Product Type / Name
|
Product Description |
Catalog / Instructions Download |
Certification |
|
 |
KDP30
Digital Pressure Gauge |
| ● |
Flexible Display Mechanics,(330 degrees) (Japanese patent applying) |
| ● |
Pressure range ： |
| |
Gauge ：0〜500kPaG to 0~35MPaG |
| |
Absolute ：0〜100kPaA to 0〜200kPaA |
| |
Compound ：-100.0~-500.0kPaG |
|
|
 |
|
 |
HUBA699
Differential Pressure
Transmitter
|
 |
Pressure range ：0〜50mbar |
|
Can replace the HUBA 694 |
|
For air conditioning systems (HVAC), non-corrosive / No impurity gases |
|
|
 |
|
 |
HUBA501
Pressure Transmitter
|
|
Pressure range ： |
| |
Relative ：0〜2.5 - 40bar |
| |
Absolute ：0〜2.5 - 16bar |
|
|
|
|
 |

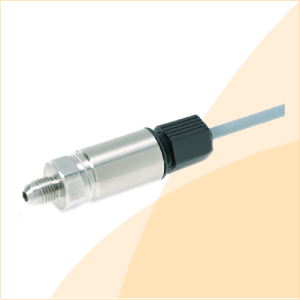

HUBA510
Pressure
Transmitter
|
|
Pressure range ：0〜2.5 - 600bar |
|
Output /Power supply :0-5V,1-6V,0-10V,4-20mA0.5〜4.5V |
|
Accuracy ：<±0.5％FS |
|
Application :
Suitable for all types of freezer refrigerant 50PCS above |
|
|
|
|
 |
HUBA511
Pressure transmitter
|
|
Pressure range：Relative：-1~600bar，Absolute：:0～25 bar |
|
Accuracy：BAR：<±0.3% F.S、PSI：<±0.5% F.S |
|
Output signal / power supply：0-5 V、1-6 V、0-10 V、4-20 mA、0.5-4.5 V |
|
|
|
|
 |

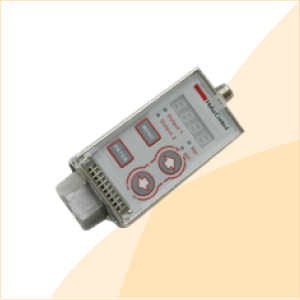

HUBA619
Pressure Transmitter
|
|
Pressure range：-1〜0 - 600bar |
|
Application: Oil hydraulic machines,
Vacuum equipment, air conditioning systems, and Manufacturing Equipment |
|
|
|
|
 |
HUBA691
Pressure transmitter
|
|
Pressure range：Relative：-1~600 bar |
|
Accuracy：<+/-0.3% F.S. |
|
Output signal / power supply：0~10V / 4~20mA/ 0~5Volt |
|
|
|
|
 |
HUBA692
Differential pressure transmitter
|
|
Pressure range：Relative：0~25bar |
|
unique ceramic technology, features adjusted and amplified sensor signals which are available as standardised voltage or current outputs |
|
Various application-specific pressure and electrical connections and housing materials suitable for different media can be provided.
|
|
No mechanical creepage |
|
High resistance to extreme temperatures |
|
Very low temperature sensitivity |
|
|
|
|
 |
HUBA694
Differential pressure transmitter
|
|
Pressure range：Relative：0~50mbar |
|
incorporate a proven ceramic fulcrum lever technology |
|
Adjustable full-scale range to:40%~100%。 |
|
Deliver adjusted and temperaturecompensated sensor signals, available as standard voltage or current outputs |
|
|
|
|
 |
HUBA604
Mechanical Pressure Switch
|
|
Pressure range：Relative：0.2~50mbar |
|
Extremely easy to install,High adjustment accuracy through individual scale laser-etching per switch
|
|
Multi-layer gold plated contact |
|
Ideally suited to protect heating coils from overheating and for monitoring industrial air cooling circuits |
|
|
|
|
 |
HUBA610
Differential
Pressure Switch
|
|
Pressure range ：-320〜500mbar |
|
Reproducibility ：<±0.1mbar |
|
Applications: Air conditioning systems, industrial equipment air traffic control points |
|
|
|
|
 |
HUBA625
Overpressure and
Vacuum Switch
|
|
Pressure range ：2〜6000mbar（Absolute） |
|
-100〜-900mbar （vacuum） |
|
Application: vacuum equipment, air compressors, gas, liquid equipment |
|
|
|
|
 |

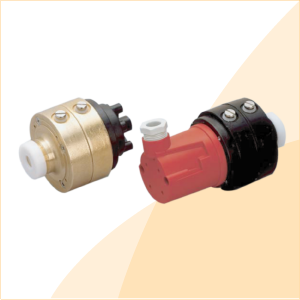

HUBA630
Differential
Pressure Switch
|
|
Pressure range ：6〜5500mbar |
|
Application: liquid, gas flow surveillance points |
|
|
|
